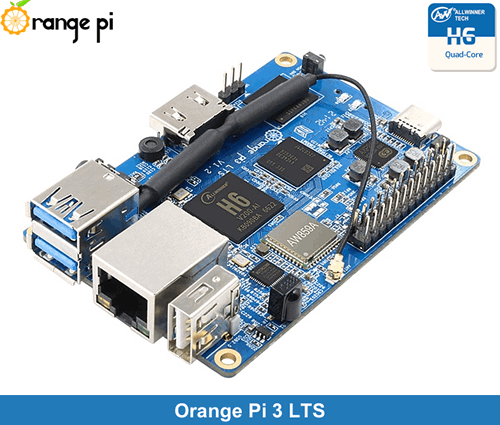

Orange pi 3 LTS

Orange Pi 3 LTS is an open-source single-board computer with dual-band wireless WiFi and Bluetooth 5.0 .It is highly compact with a dimension of 56X85mm.

What can I do with Orange Pi 3?

Orange Pi 3 LTS uses the Allwinner H6 SoC, and has 2GB LPDDR3 SDRAM, 8GB EMMC Flash. It can run Android 9,Ubuntu,Debian. Orange Pi 3 LTS offers a range of different ports, including HDMI output, 26pin headers, Gbps Ethernet port,1*USB 3.0, 2* USB2.0,etc. It is powered through Type-C. It is a good choice for applications that need strong networking perfomance.

Who’s it for?

Orange Pi 3 LTS is for anyone who wants to start creating with technology- not just consuming it. lt's a simple, fun, useful tool that you can use to start taking control of the world around you.

Orange pi 3 Lts pinout
                                 Hardware Specification
SOCAllwinner H6 64bit
CPUQuad-core 64-bit 1.8GHz high-performance Cortex-A53 processor
GPUHigh-performance multi-core GPU Mali T720
OpenGL ES3.1/3.0/2.0/1.1
Microsoft DirectX 11 FL9_3
ASTC(Adaptive Scalable Texture Compression)
Floating point operation greater than 70 GFLOPS
Power management chipAXP805
Memory2GB LPDDR3 (shared with GPU)
Onboard StorageMicro SD card slot
8GB EMMC Flash
Onboard EthernetYT8531C Chip
Support 10/100M/1000M Ethernet
Onboard WiFi+BTAW859A Chip
Support IEEE 802.11 a/b/g/n/ac • Support BT5.0
AudioHDMI Output • 3.5mm Audio Port
VideoHDMI 2.0a
TV CVBS Output
Power Source 5V3A Type-C
USB1* USB 3.0 HOST、2* USB 2.0 HOST
Low-level peripherals26pin connector with1* I2C, 1*SPI, 1*UART &Multiple GPIO Ports
Debug serial portUART-TX、UART-RX & GND
ButtonPower Button (SW4)
LEDPower LED& Status LED
IR ReceiverSupport IR Remote Control
Supported OSAndroid 9.0、Ubuntu、Debian
Appearance specification introduction
