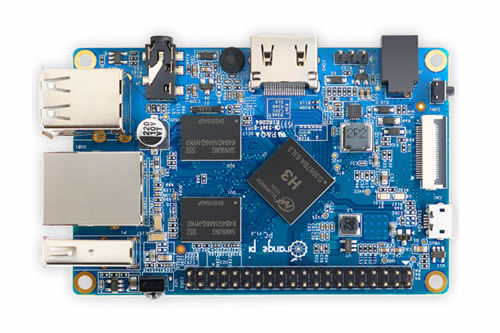

Orange Pi PC Plus is an open-source single-board computer .It uses the Allwinner H3 SoC with Quad-core Cortex-A7, has 1GB LPDDR3 SDRAM, and can run Android 4.4, Ubuntu, Debian Image.Orange Pi PC offers a range of different ports, including CSI camera port ,HDMI output, 40pin headers, 100M Ethernet port,USB2.0,etc. It is powered through DC
What can I do with Orange Pi PC ?
You can use it to build…
A computer, A wireless server, Games, Music and sounds, HD video, A speaker, Android, Scratch, Pretty much anything else, because Orange Pi Pc Plus is open source
Who’s it for?
Orange Pi PC is for anyone who wants to start creating with technology- not just consuming it. lt's a simple, fun, useful tool that you can use to start taking control of the world around you.
| Hardware Specification | ||
|---|---|---|
| SOC | Alwinner H3 , Cortex A7 | |
| CPU | H3 Quad-core Cortex-A7 H.265/HEVC 4K | |
| GPU | • Mali400MP2 GPU @600MHz
• Supports OpenGL ES 2.0 | |
| Memory | 1GB DDR3 (shared with GPU) | |
| Onboard Storage | TF card (Max. 32GB) | |
| Onboard Ethernet | 10/100 Ethernet RJ45 | |
| Onboard WIFI | - | |
| Video Input | • A CSI input connector camera:
• Supports 8-bit YUV422 CMOS sensor interface • Supports CCIR656 protocol for NTSC and PAL • Supports SM pixel camera sensor • Supports video capture solution up to 1080p@30fps | |
| Audio Input | MIC | |
| Video Outputs | • Supports HDMI output with HDCP
• Supports HDMI CEC • Supports HDMI 30 function • Integrated CVBS • Supports simultaneous output of HDMI and CVBS | |
| Audio Output | 3.5 mm Jack and HDMI | |
| Power Source | DC input, USB OTG input don't supply power | |
| USB 2.0 Ports | Three USB 2.0 HOST, one USB 2.0 OTG | |
| Buttons | Power button | |
| Low-level peripherals | 40 Pins Header | |
| GPIO(1x3) pin | UART, Ground. | |
| LED | Power led & Status led | |
| Key | IR input,Power | |
| Supported OS | Android Lubuntu, Debian Image | |
| Product size | 85 mm × 55mm | |
| Weight | 38g |
