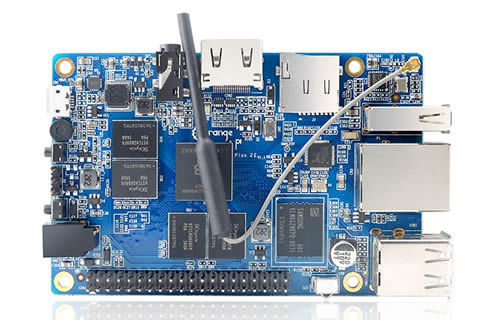

Orange pi Plus 2E
Orange Pi Plus 2E is an open-source single-board computer with Gigabit Ethernet port . It is highly compact with a dimension of 60X93mm. It can run Android 4.4 , Ubuntu, Debian Image.
Orange Pi Plus 2E is an open-source single-board computer with Gigabit Ethernet port . It is highly compact with a dimension of 60X93mm. It can run Android 4.4 , Ubuntu, Debian Image.
What can I do with Orange Pi Plus 2E?
Build…
A computer, A wireless server, Games, Music and sounds, HD video, A speaker, Android, Scratch, Pretty much anything else, because Orange Pi Plus 2E is open source
Who’s it for?
Orange Pi Plus 2E is for anyone who wants to start creating with technology – not just consuming it. It's a simple, fun, useful tool that you can use to start taking control of the world around you.
| Hardware Specification | ||
|---|---|---|
| SOC | Alwinner H3 , Cortex A7 | |
| CPU | H3 Quad-core Cortex-A7 H.265/HEVC 4K | |
| GPU | • Mali400MP2 GPU @600MHz • Supports OpenGL ES 2.0 | |
| Memory | 2GB DDR3 (shared with GPU) | |
| Onboard Storage | TF card (Max. 32GB) / MMC card slot
16GB EMMC Flash | |
| Onboard Ethernet | 10/100/1000M Ethernet RJ45 | |
| Onboard WIFI | Realtek RTL8189ETV, IEEE 802.11 b/g/n | |
| Video Input | • A CSI input connector camera:
• Supports 8-bit YUV422 CMOS sensor interface • Supports CCIR656 protocol for NTSC and PAL • Supports SM pixel camera sensor • Supports video capture solution up to 1080p@30fps | |
| Audio Input | MIC | |
| Video Outputs | • Supports HDMI output with HDCP
• Supports HDMI CEC • Supports HDMI 30 function • Integrated CVBS • Supports simultaneous output of HDMI and CVBS | |
| Audio Output | 3.5 mm Jack and HDMI | |
| Power Source | DC input can supply power, but USB OTG input don’t supply power | |
| USB 2.0 Ports | Three USB 2.0 HOST, one USB 2.0 OTG | |
| Buttons | Power Button(SW4), Recovery Button(SW3), Uboot Button(SW2) | |
| Low-level peripherals | 40 Pins Header | |
| GPIO(1x3) pin | UART, Ground. | |
| LED | Power led & Status led | |
| Other | IR input | |
| Supported OS | Android, Ubuntu, Debian | |
| Product size | 60mm × 93mm | |
| Weight | 83g |
