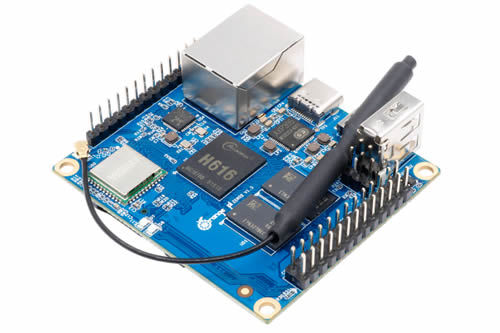

Orange pi Zero 2
Orange Pi Zero2 is an open-source single-board computer with dual-band wireless Wi-Fi and Bluetooth 5.0 .It is highly compact with a dimension of 53X60mm. It can run Android10, Ubuntu, Debian.
Orange Pi Zero2 is an open-source single-board computer with dual-band wireless Wi-Fi and Bluetooth 5.0 .It is highly compact with a dimension of 53X60mm. It can run Android10, Ubuntu, Debian.
What can I do with Orange Pi Zero2 ?
You can use it to build…
A computer, A wireless server, Games, Music and sounds, HD video, A speaker, Android, Scratch, Pretty much anything else, because Orange Pi Pc Plus is open source
Who’s it for?
Orange Pi Zero2 is for anyone who wants to start creating with technology- not just consuming it. lt's a simple, fun, useful tool that you can use to start taking control of the world around you.
| Hardware Specification | ||
|---|---|---|
| CPU | Allwinner H616 64-bit high-performance Quad-core Cortex-A53 processor | |
| GPU | • Mali G31 MP2
• Supports OpenGL ES 1.0/2.0/3.2、OpenCL 2.0 | |
| Video Decoding | • H.265 Main10@L5.1 decoder up to 4K@60fps or 6K@30fps
• VP9 Profile 2 decoder up to 4K@60fps • AVS2 JiZhun 10bit decoder up to 4K@60fps • H.264 BP/MP/HP@L4.2 decoder up to 4K@30fps | |
| Video Encoding | • H.264 BP/MP/HP encoder up to 4K@25fps or 1080p@60fps
• JPEG snapshot performance of 1080p@60fps | |
| Memory(SDRAM) | 512MB/1GB DDR3 (Shared with GPU） | |
| Onboard Storage | • TF card slot
• 2MB SPI Flash | |
| Onboard Network | Support 1000M/100M/10M Ethernet | |
| Onboard WiFi+BT | • AW859A Chip
• Support IEEE 802.11 a/b/g/n/ac • Support BT5.0 | |
| Video Outputs | • Micro HDMI 2.0a up to 4K@60fps
• TV CVBS output, Support PAL/NTSC（Via 13pin interface board） | |
| Audio output | • Micro HDMI
• 3.5mm audio port (Via 13pin interface board) | |
| Power Source | Type-C interface 5V3A input | |
| USB 2.0 Ports | 3*USB 2.0 HOST（Two of them are via 13pin interface board） | |
| Low-level peripherals | • 26pin header with I2C, SPI, UART and multiple GPIO ports
• 13pin header with 2*USB Host, IR pin, Tv-out、AUDIO (no MIC) and 3 GPIO ports | |
| Debug serial port | UART-TX、UART-RX and GND | |
| LED | Power led & Status led | |
| IR receiver | Support IR remote control (via 13pin interface board) | |
| Supported OS | Android10、Ubuntu、Debian | |
| Dimension | 53mm×60mm | |
| Weight | 30g |
