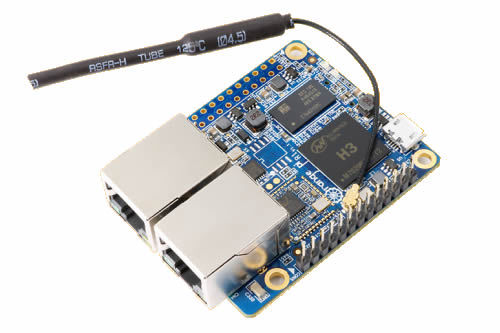

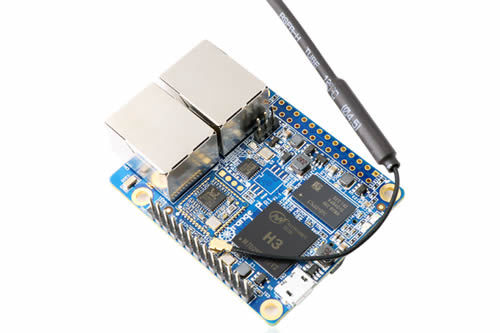

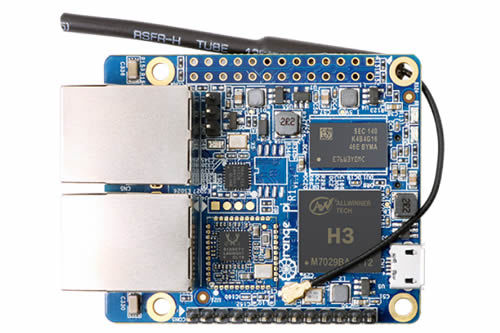

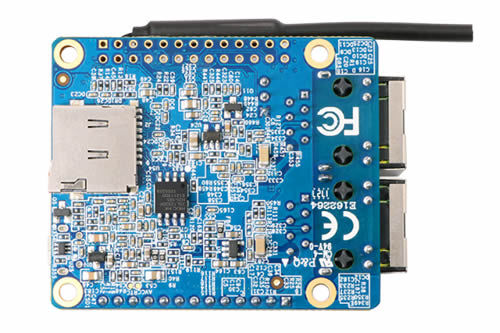

Orange pi R1
Orange Pi R1 is an open-source single-board computer with dual 100 Ethernet network ports. It is highly compact with a dimension of 45X60mm. It can run Android 4.4, Ubuntu, Debian.
Orange Pi R1 is an open-source single-board computer with dual 100 Ethernet network ports. It is highly compact with a dimension of 45X60mm. It can run Android 4.4, Ubuntu, Debian.
What can I do with Orange Pi R1 ?
Build… A computer, A wireless server, Games Music and sounds, HD video, A speaker, Android Scratch
Pretty much anything else, because Orange Pi R1 is open source
Who’s it for?
Orange Pi R1 is for anyone who wants to start creating with technology – not just consuming it. It's a simple, fun, useful tool that you can use to start taking control of the world around you.

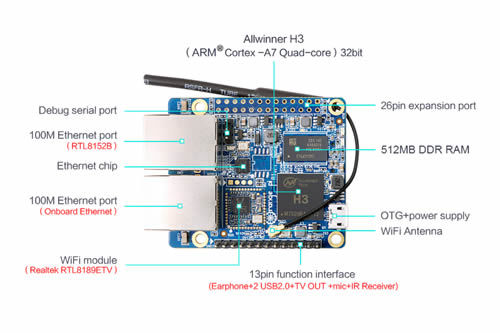

| Hardware Specification | ||
|---|---|---|
| CPU | H2 Quad-core 32-bit Cortex-A7 | |
| GPU | Mali400MP2 GPU @600MHz, Supports OpenGL ES 2.0 | |
| Memory (SDRAM) | 256MB/512MB DDR3 (shared with GPU) | |
| Onboard Storage | TF card (Max. 32GB) / Spi flash(16MB) | |
| Wifi Antenne | Yes | |
| Onboard WiFi | Realtek RTL8189FTV, IEEE 802.11 b/g/n | |
| Onboard Network | • 100M/10M Ethernet RJ45(Onboard Ethernet)
• 100M/10M Ethernet RJ45(RTL8152B) | |
| Audio Input | No | |
| Video Outputs | Supports external board via 13pins | |
| Power Source | USB OTG can supply power | |
| GPIO(1x3) pin | UART, ground. | |
| Buttons | Power Button(SW602) | |
| Low-level peripherals | • 26 Pins Header
• 13 Pins Header, with 2x USB, IR pin, AUDIO(MIC, AV) | |
| LED | Power led & Status led | |
| Supported OS | Android4.4, Lubuntu, Debian, Armbian Image | |
| Product size | 45 mm × 60mm | |
| Weight | 35g |
